Spare Part Number:
CG-084
Technical Datasheet:
Protected Link

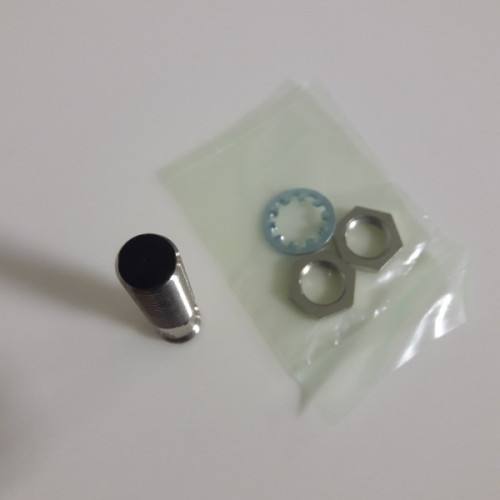

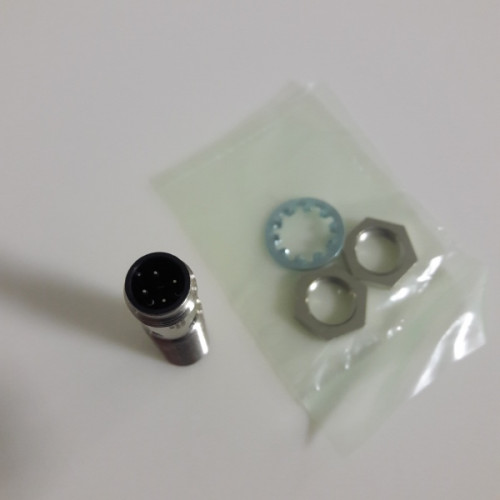

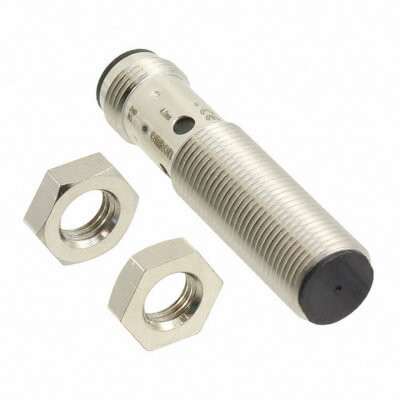

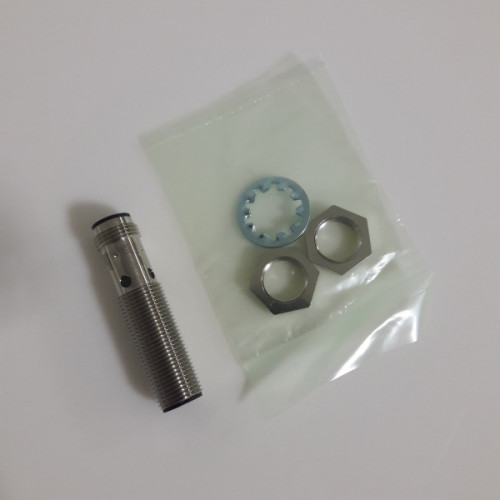

CG-084 Proximity Sensor
Proximity sensor, LITE, inductive, nickel-brass, short body, M12, shielded, 4 mm, DC, 3-wire, PNP-NO, M12 plug-in
M12
E2B-M12KS04-M1-B1
General data
| Size | M12 |
| Mounting type | Quasi-flush |
| Sensing distance | 4 mm |
| Output type | PNP |
| Operation mode | NO |
| Connection method | Connector M12 |
| Material housing | Brass, nickel plated |
| Cable specifications | - |
| Overall length | 51 mm |
| Thread length | 31 mm |
| Degree of protection (IP) | IP67 |
830 Ref S04, S05, S20, S21
810 Ref S5
812 Ref S5
| Suitable for the following equipment models: | |
|---|---|
| CLASSIC 3 P | |
| CLASSIC 4 P | |
| EASY TO PLATE EVO 3 IPD | |
| EASY TO PLATE EVO 3 IPI | |
| EASY TO PLATE EVO 4 IPD | |
| EASY TO PLATE EVO 4 IPI | |
| EASY TO PLATE EVO 5 BPD | |
| EASY TO PLATE EVO 5 BPI | |
| EASY TO PLATE EVO 5 IPD | |
| EASY TO PLATE EVO 5 IPI | |
| EVO 2 A | |
| EVO 3 A | |
| EVO 3 IP | |
| EVO 4 IP | |
| EVO 5 BP | |
| EVO 5 IP | |
| Spare Part Type | |
| Electrical Component | |
| Hydraulic Component | |
| Spare Part Group | |
| Sensor | |
| Stock Type | |
| Standard Stock | |
