Spare Part Number:
CG-094
Net Weight:
65.00g
Net Dimensions:
32.00mm x 58.67mm x 42.70mm
Technical Datasheet:
Protected Link (EN)
Certification: Protected Link - CE CAUK UL Declarations
Certification: Protected Link - CHINA Declaration
Manual: Protected Link
Certification: Protected Link - CE CAUK UL Declarations
Certification: Protected Link - CHINA Declaration
Manual: Protected Link

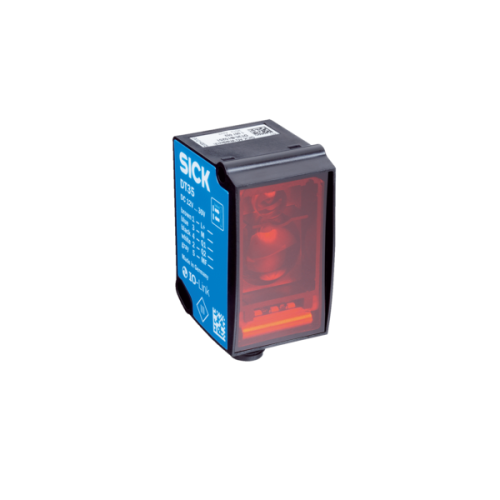

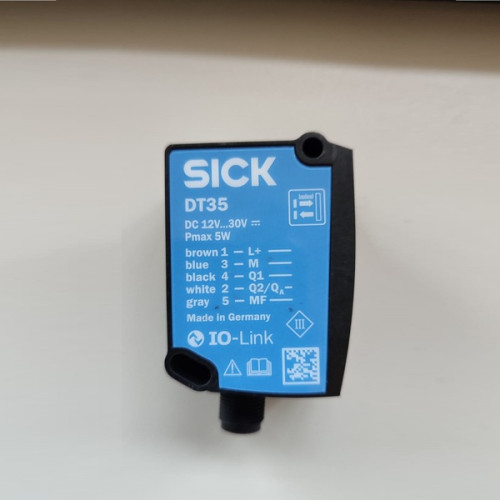

CG-094 Mid range distance sensor
If used as a direct replacement for CG-083 (in any machine originally fitted with CG-083) you need to install the retrofit kit CG-900
DT35-B15851
General data
| Measuring range |
50 mm ... 12,000 mm, 90 % remission 1) 2) 50 mm ... 5,300 mm, 18 % remission 50 mm ... 3,100 mm, 6 % remission |
| Target | Natural objects |
| Resolution | 0.1 mm |
| Repeatability | ≥ 0.5 mm 2) 3) 4) |
| Accuracy | Typ. ± 10 mm 4) |
| Response time | 2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms 5) 6) |
| Switching frequency | 333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz 5) 6) |
| Output time | 1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms 5) 7) |
| Light source | Laser, infrared 8) Infrared light |
| Laser class | 1 (IEC 60825-1:2014, EN 60825-1:2014) |
| Typ. light spot size (distance) | 15 mm x 15 mm (at 2 m) |
| Additional function | Set speed: Super Fast ... Super Slow, teach-in of analog output and invertible analog output, Output Q2 adaptable: Current output / Voltage output / Digital output, Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB), teach-in of digital output and digital output invertible, Multifunctional input: laser off / external teach / deactivated, reset to factory default |
| Average laser service life (at 25 °C) | 100,000 h |
- 1) For speed setting Slow.
- 2) See repeatability characteristic lines.
- 3) Equivalent to 1 σ.
- 4) 6 % ... 90 % remission.
- 5) Depending on the set speed: Super Fast ... Super Slow.
- 6) Lateral entry of the object into the measuring range.
- 7) Continuous change of distance in measuring range.
- 8) Wavelength: 827 nm; max. output: 130 mW; pulse duration: 3.5 ns; duty cycle: 1/250.
812 V3 Ref D1
| Spare Part Type | |
|---|---|
| Electrical Component | |
| Spare Part Group | |
| Sensor | |
| Stock Type | |
| Standard Stock | |
