Spare Part Number: CH-006
Net Dimensions: 1,046.00mm x 8.00mm x 12.00mm

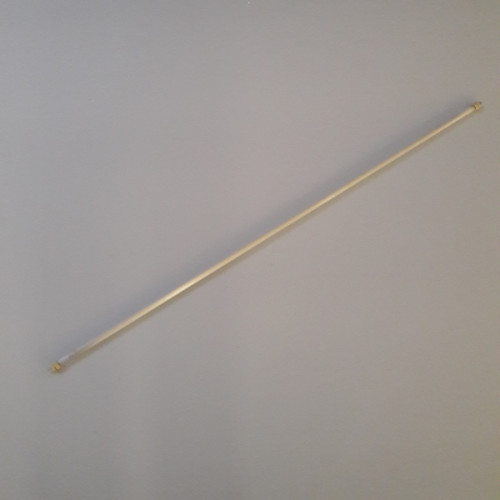

CH-006  Heating resistor quartz



Quartz heating is a type of radiant heating, commonly referred to as short-wave infrared heating. The tubes are manufactured from quartz glass (fused silica), which protect and support the heating coils. They provide efficient transmission of infra-red radiation, good resistance to chemical and contamination.

Heating coils are wound in various grades of iron-chrome-aluminium alloys to match the applications and operating conditions, and typically generate radiant emission in the short to medium wavelength range.



1300W - 8x12x1046mm 230V

610 Ref

611 Ref

Spare Part Type
Electrical Component
Spare Part Group
Heater
Stock Type
Standard Stock
