Spare Part Number: CP-120
Technical Datasheet: Protected Link

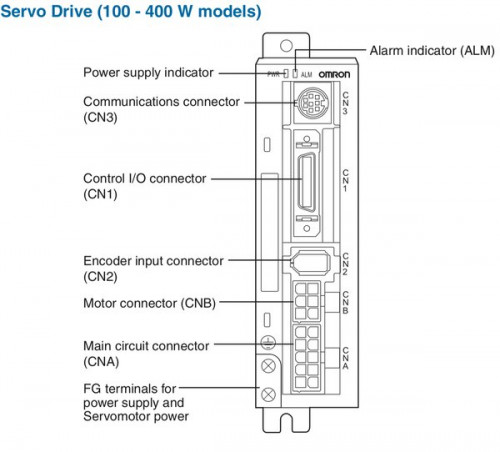

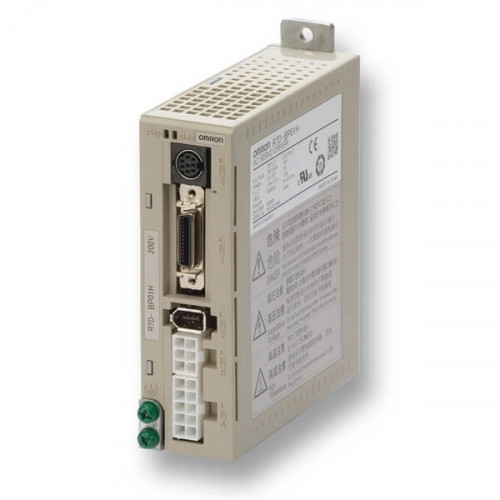

CP-120   Servo Drive (This component need to be programmed in the factory)

Please note: This part is not a direct replacement for CP-260.


Prior to ordering make sure you check what part is currently installed in your equipment.

Electronic device that translates low-energy command signals from a controller into high-energy voltage and current delivered to a servo motor. The command signal can represent the desired position, velocity or torque. The servo drive monitors feedback on the motor and automatically adjusts its output to correct for differences between the commanded value and actual.



NOTE: This component need to be programmed in the factory.

R7D-BP04H

D2T / 400W





 Equipment Model Ref. 1 Ref. 2 Ref. 3 Ref. 4 Ref. 5

EVO 2 A
EVO 3 A

EVO 3 IP

Easy to Plate EVO 3 IP D

Easy to Plate EVO 3 IP I

Servo Drive 1 for M2 - Washout Brushes (on the Left) Servo Drive 2 for M4 - Washout Brushes (on the Right) Servo Drive 3 for M3 - Brush Oscillation (on the Left) Servo Drive 4 for M5 Brush Oscillation (on the Right) Servo Drive 5 for M1 Chain Transfer

EVO 4 IP

Easy to Plate EVO 4 IP D

Easy to Plate EVO 4 IP I

Servo Drive 1 for M2 - Washout Brushes (on the Left) Servo Drive 2 for M4 - Washout Brushes (on the Right) Servo Drive 3 for M3 - Brush Oscillation (on the Left) Servo Drive 4 for M5 Brush Oscillation (on the Right) Servo Drive 5 for M1 Chain Transfer

EVO 5 BP

Easy to Plate EVO 5 BP D

Easy to Plate EVO 5 BP I

Servo Drive 3 Servo Drive 4 Servo Drive 5


611 V2

M1 M2 M3

620

M1 M2 M3

621

M1 M2 M3

830

M2 M3
Suitable for the following equipment models:
CLASSIC 3 P
CLASSIC 4 P
EASY TO PLATE EVO 4 IPD
EASY TO PLATE EVO 4 IPI
EASY TO PLATE EVO 5 BPD
EASY TO PLATE EVO 5 BPI
EASY TO PLATE EVO 5 IPD
EASY TO PLATE EVO 5 IPI
EVO 2 A
EVO 3 A
EVO 4 IP
EVO 5 BP
EVO 5 IP
Spare Part Type
Electrical Component
Spare Part Group
Others
Stock Type
Standard Stock
