Spare Part Number:
DJ-060
Net Weight:
4,100.00g
Net Dimensions:
246.00mm x 226.00mm x 130.00mm
Technical Datasheet:
Protected Link
DJ-060

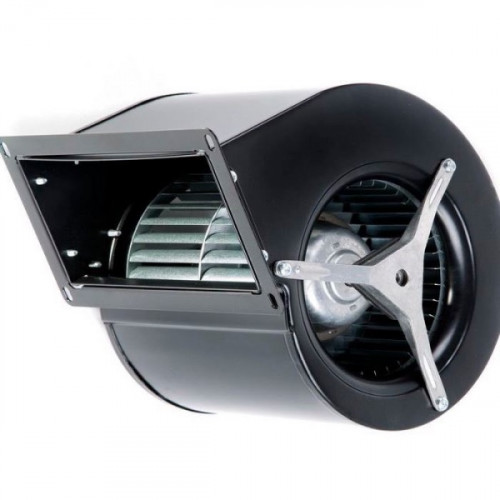

Single inlet centrifugal fans with single phase asynchronous motor.
Centrifugal fans use the kinetic energy of the impellers to move the air stream, which in turn moves against the resistance caused by duct. They are sturdy, quiet, reliable, and capable of operating over a wide range of conditions.
Cooling Blower
N15-B2 p
| Voltage | Frequency | Power | Current | Capacitor | Air flow | Speed | Noise Level | Rotation | Operating Temp. |
| VAC | Hz | W | A | µF | m3/h | RPM | dBA | ⟳ | Min/Max |
| 230 | 50 | 268 | 1,19 | 5,0 | 630 | 2125 | 66 | R | -20°C / +70°C |
| 230 | 60 | 305 | 1,33 | 5,0 | 510 | 2180 | 64 | R | -20°C / +60°C |
810
812
| Spare Part Type | |
|---|---|
| Electrical Component | |
| Spare Part Group | |
| Blower | |
| Stock Type | |
| Standard Stock | |
