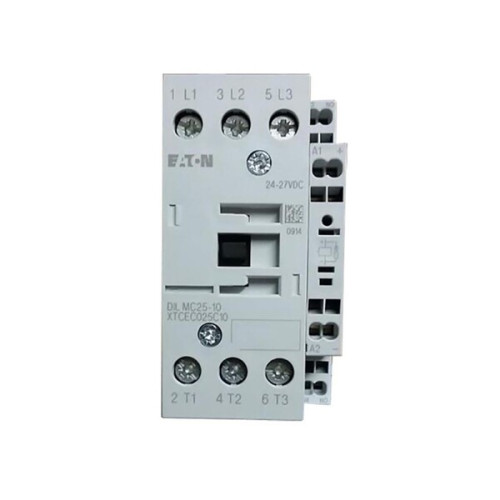

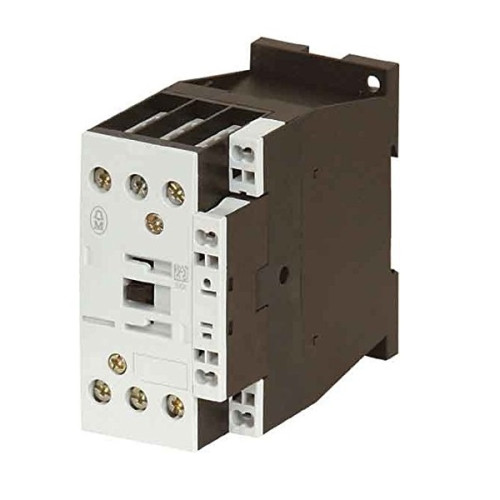

CC-122 Contactor
A contactor is an electrically-controlled switch used for switching an electrical power circuit. A contactor is typically controlled by a circuit which has a much lower power level than the switched circuit, such as a 24-volt coil electromagnet controlling a 230-volt motor switch.
3 pole, 380 V 400 V 11 kW, 1 N/O, RDC 24: 24 - 27 V DC, DC operation, Spring-loaded terminals
DILMC25-10 (24VDC)
| Standards | IEC/EN 60947, VDE 0660, UL, CSA |
| Lifespan, mechanicalDC operated [Operations] | 10 x 106 |
| Operating frequency, mechanical DC operated [Operations/h] | 5000 |
| Climatic proofing |
Damp heat, constant, to IEC 60068-2-78 Damp heat, cyclic, to IEC 60068-2-30 |
| Ambient temperature Open | -25 - +60 °C |
| Ambient temperature Enclosed | - 25 - 40 °C |
| Ambient temperature Storage | - 40 - 80 °C |
EVO 4 DLF Ref. K-UVA - Contactor for UVA Lamp banks 1, 2 and 3, K-UVC - Contactor for UVC Lamp banks 1, 2 and 3
EVO 5 DLF Ref. K-UVA - Contactor for UVA Lamp banks 1, 2 and 3, K-UVC - Contactor for UVC Lamp banks 1, 2 and 3
EVO 5 BP Ref.
Easy to Plate EVO 5 BP D Ref.
Easy to Plate EVO 5 BP I Ref. K_UVA for UVA Lamps Banks 1 to 3, K_UVC for UVC Lamps Banks 1 to 3.
620 Ref. KP1, KP2, KP5
621 Ref. KP1, KP2, KP5
830 Ref. KP1, KP2, KP5, AK
810 Ref K1
812 Ref K1
| Suitable for the following equipment models: | |
|---|---|
| EASY TO PLATE EVO 5 BPI | |
| EVO 4 E | |
| EVO 4 EDLF | |
| EVO 4 ELF | |
| EVO 5 E | |
| EVO 5 ELF | |
| Spare Part Type | |
| Electrical Component | |
| Spare Part Group | |
| Contactor | |
| Stock Type | |
| Standard Stock | |
