Product Code:
CG-042
Weight:
20.00g
Dimensions:
69.50mm x 12.00mm x 12.00mm
Custom Field 1 (UPC):
Protected Link
CG-042 Photocell
A diffuse-reflective photoelectric sensor to determine the presence of an object by using a light transmitter and a photoelectric receiver. A status change cause the sensor to trigger.

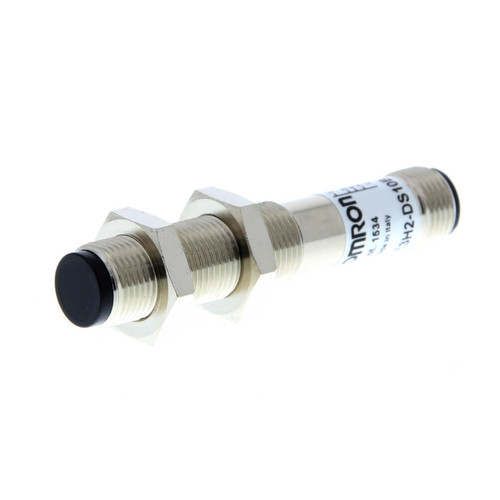

E3H2-DS10B4M-M1
General specifications
| Shape | Cylindrical axial |
| Sensing method | Diffuse reflective |
| Sensing distance | 100 mm |
| Setting method | Fixed |
| Connection method | Connector M12 |
| Output type | PNP |
| Operation mode | Dark-ON, Light-ON |
| Response time | 1.1 ms |
| Material housing | Brass, nickel plated |
| Thread size | M12 |
| Length | 69.5 mm |
| Type of light | Infrared LED (880 nm) |
| Power supply voltage | 10-30 V |
EVO 5 IP Ref.
EVO 5 IPD Ref.
EVO 5 IPI Ref.
EVO 5 BP Ref.
EVO 5 BPD Ref.
EVO 5 BPI Ref.
620 Ref S11
621 Ref S11
830 Ref S23
810 Prototype Ref. Zero point (NO LONGER IN USE) see CG-039
810 Prototype Ref. Zero point (NO LONGER IN USE) see CG-039
| Suitable for the following equipment models: | |
|---|---|
| EASY TO PLATE EVO 4 IPD | |
| EASY TO PLATE EVO 4 IPI | |
| EASY TO PLATE EVO 5 BPD | |
| EASY TO PLATE EVO 5 BPI | |
| EASY TO PLATE EVO 5 IPD | |
| EASY TO PLATE EVO 5 IPI | |
| EVO 4 IP | |
| EVO 5 BP | |
| EVO 5 IP | |
| Spare Part Type | |
| Electrical Component | |
| Spare Part Group | |
| Sensor | |
| Stock Type | |
| Standard Stock | |
