Product Code:
CG-065
Custom Field 1 (UPC):
Protected Link (1) - Protected Link (2)

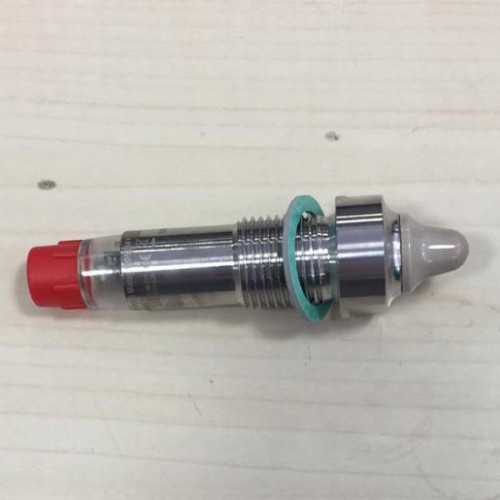

CG-065 Level sensor
Electrode integrated sensor that together with the environment forms a capacitor. Depending on its dielectric constant (DC value), the medium determines the capacity value. This, together with a coil in the sensor electronics, creates a resonance circuit. Depending on the measured resonance frequency and the programmable trigger thresholds, the switching signal is triggered.
LFBS-01511.0
|
liquid level
|
|
|
-40...85°C
|
|
|
PNP
|
|
|
connector M12
|
|
|
programmable
|
|
|
12...30V DC
|
|
|
G 1/2" for reverse assembly
|
|
|
IP67
|
|
|
4
|
|
|
DARK-ON, LIGHT-ON
|
|
|
9701-0001
|
|
|
stainless steel
|
610 Ref. L1, L2, L3
620 Ref. L1, L2, L3, L4, L5, L6, L7, L11, L12
621 Ref. L1, L2, L3, L4, L5, L6, L7, L11, L12
830 Ref. L1, L2, L3, L4, L5, L6, L7, L11, L12
810 Ref L2
812 Ref L2
| Spare Part Type | |
|---|---|
| Electrical Component | |
| Spare Part Group | |
| Sensor | |
| Stock Type | |
| Standard Stock | |
