CG-094 - Mid range distance sensor

Product Code: CG-094

Weight: 65.00g

Dimensions: 32.00mm x 58.67mm x 42.70mm

Custom Field 1 (UPC): Protected Link (EN)
Custom Field 2 (EAN): Protected Link - CE CAUK UL Declarations
Custom Field 3 (ISPN): Protected Link - CHINA Declaration
Custom Field 5 (Location): Protected Link

CG-094 Mid range distance sensor

If used as a direct replacement for CG-083 (in any machine originally fitted with CG-083) you need to install the retrofit kit CG-900

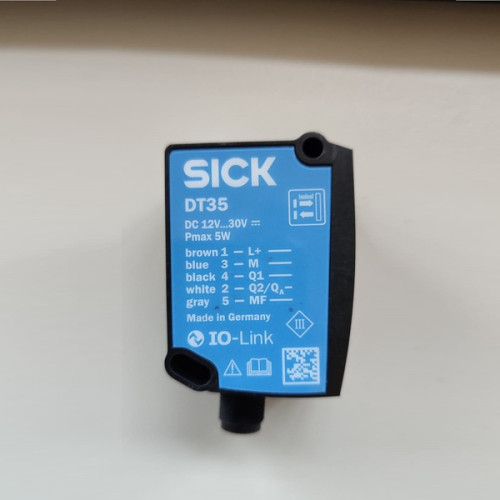

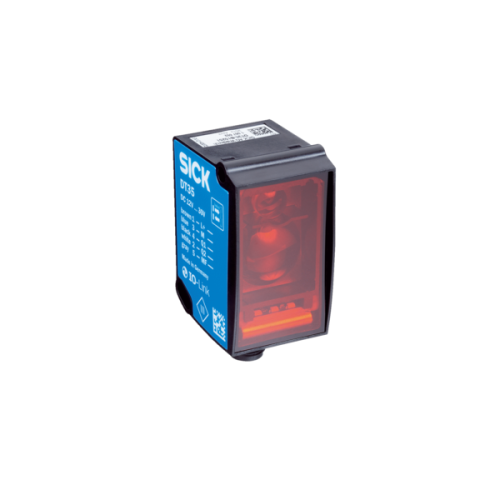

DT35-B15851

General data

Measuring range	50 mm ... 12,000 mm, 90 % remission ¹⁾ ²⁾ 50 mm ... 5,300 mm, 18 % remission 50 mm ... 3,100 mm, 6 % remission
Target	Natural objects
Resolution	0.1 mm
Repeatability	≥ 0.5 mm ²⁾ ³⁾ ⁴⁾
Accuracy	Typ. ± 10 mm ⁴⁾
Response time	2.5 ms ... 96.5 ms, 2.5 ms / 6.5 ms / 12.5 ms / 24.5 ms / 96.5 ms ⁵⁾ ⁶⁾
Switching frequency	333 Hz / 100 Hz / 50 Hz / 25 Hz / 6 Hz ⁵⁾ ⁶⁾
Output time	1 ms ... 32 ms, 1 ms/2 ms/4 ms/8 ms/32 ms ⁵⁾ ⁷⁾
Light source	Laser, infrared ⁸⁾ Infrared light
Laser class	1 (IEC 60825-1:2014, EN 60825-1:2014)
Typ. light spot size (distance)	15 mm x 15 mm (at 2 m)
Additional function	Set speed: Super Fast ... Super Slow, teach-in of analog output and invertible analog output, Output Q₂ adaptable: Current output / Voltage output / Digital output, Switching mode: Distance to Object (DtO) / switching window / object between sensor and background (ObSB), teach-in of digital output and digital output invertible, Multifunctional input: laser off / external teach / deactivated, reset to factory default
Average laser service life (at 25 °C)	100,000 h

¹⁾ For speed setting Slow.
²⁾ See repeatability characteristic lines.
³⁾ Equivalent to 1 σ.
⁴⁾ 6 % ... 90 % remission.
⁵⁾ Depending on the set speed: Super Fast ... Super Slow.
⁶⁾ Lateral entry of the object into the measuring range.
⁷⁾ Continuous change of distance in measuring range.
⁸⁾ Wavelength: 827 nm; max. output: 130 mW; pulse duration: 3.5 ns; duty cycle: 1/250.
