Product Code:
CP-252
Weight:
90.00g
Dimensions:
100.00mm x 12.00mm x 71.00mm
Custom Field 1 (UPC):
Protected Link
Custom Field 5 (Location): MAN1-Protected Link - -MAN2-Protected Link
Custom Field 5 (Location): MAN1-Protected Link - -MAN2-Protected Link

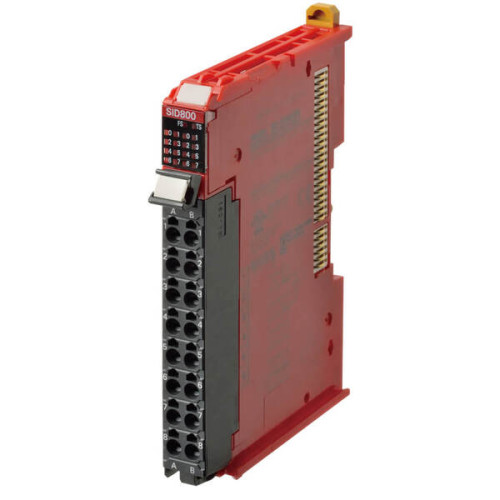

CP-252 Safety I/O Card
8 Digital Safety Inputs, PNP 24 VDC, screwless push-in connector, 12 mm wide
NX-SID800
| I/O system | NX I/O Bus |
| Type of module | Safety I/O |
| Number of digital inputs | 8 |
| Digital input type | PNP |
| Permitted voltage at input | 20.4-28.8 V |
| Number of digital outputs | 2 |
| Digital output type | None |
| Short-circuit protected outputs | No |
| Connection method | 4-wire |
| Signal processing | Free running |
| IO link master | No |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | Yes |
| Suitable for safety functions | Yes |
| SIL according to IEC 61508 | 3 |
| Communication port(s) | None |
| Number of IOV (V+) terminals | 0 |
| Number of IOG (V-) terminals | 0 |
| Number of COM terminals | 0 |
| Degree of protection (IP) | IP20 |
| Height | 100 mm |
| Width | 12 mm |
| Depth | 71 mm |
| Weight | 90 g |
810 Ref. SID800
812 Ref. SID800
| Spare Part Type | |
|---|---|
| Electrical Component | |
| Stock Type | |
| Standard Stock | |
