Product Code:
DK-021
Weight:
238.00g

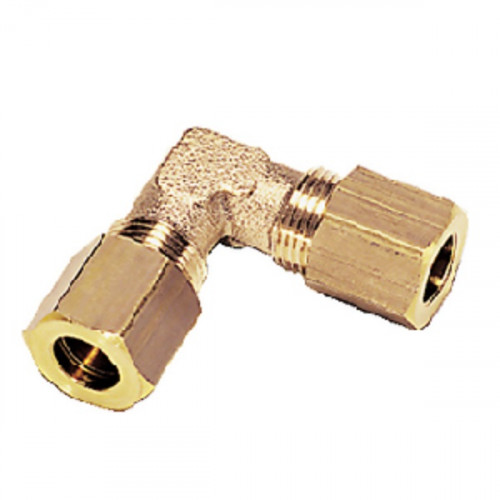

DK-021 - Equal Elbow Ø20-Ø20
Connection of 2 tubes together at a 90° angle.
0102 20 00
| working temperature | -40 to 250 °C | -76 to 482 °F | 233 to 523 °K |
| olive | BRASS | ||
| body | BRASS | ||
| nut | BRASS |
| ØD (MM) | F (inc) | J (inc) | Lmax (inc) | Weight (kg) | ||
| 0102 20 00 | 20 | 1.26 | 0.91 | 1.65 | 0.238 | |
| ØD (mm) | F (mm) | J (mm) | Lmax (mm) | Weight (kg) | ||
| 0102 20 00 | 20 | 32 | 23 | 42 | 0.238 | |
| Suitable for the following equipment models: | |
|---|---|
| CLASSIC 3 P | |
| CLASSIC 4 P | |
| EASY TO PLATE EVO 3 IPD | |
| EASY TO PLATE EVO 3 IPI | |
| EASY TO PLATE EVO 4 IPD | |
| EASY TO PLATE EVO 4 IPI | |
| EASY TO PLATE EVO 5 IPD | |
| EASY TO PLATE EVO 5 IPI | |
| EVO 3 IP | |
| EVO 4 IP | |
| EVO 5 IP | |
| Spare Part Type | |
| Hydraulic Component | |
| Pneumatic Component | |
| Spare Part Group | |
| Others | |
| Stock Type | |
| Standard Stock | |
