Product Code:
DK-031
Weight:
105.00g

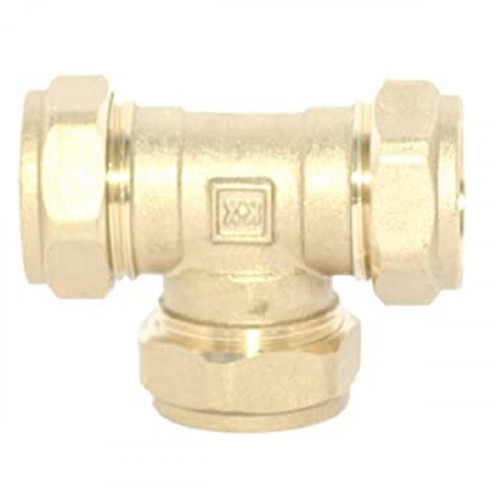

DK-031 - Equal Tee Ø10
Connection of 3 tubes at two 90° angles.
0104 10 00
| maximum working pressure | 550 bar | 55 MPa | 7977 psi |
| working temperature | -60 to 250 °C | -76 to 482 °F | 213 to 523 °K |
| vacuum capability | 755 mm Hg | ||
| olive | BRASS | ||
| body | BRASS | ||
| nut | BRASS |

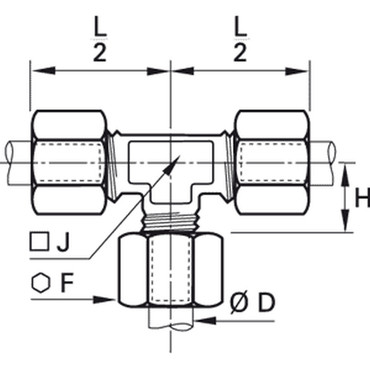

| ØD (MM) | F (inc) | H (inc) | J (inc) | L_2 (inc) | Weight (kg) | ||
| 0104 10 00 | 10 | 0.75 | 0.57 | 0.47 | 1.18 | 0.105 | |
| ØD (mm) | F (mm) | H (mm) | J (mm) | L_2 (mm) | Weight (kg) | ||
| 0104 10 00 | 10 | 19 | 14.5 | 12 | 30 | 0.105 | |
| Suitable for the following equipment models: | |
|---|---|
| CLASSIC 3 P | |
| EASY TO PLATE EVO 3 IPD | |
| EASY TO PLATE EVO 3 IPI | |
| EASY TO PLATE EVO 4 IPD | |
| EASY TO PLATE EVO 4 IPI | |
| EASY TO PLATE EVO 5 BPD | |
| EASY TO PLATE EVO 5 BPI | |
| EASY TO PLATE EVO 5 IPD | |
| EASY TO PLATE EVO 5 IPI | |
| EVO 3 IP | |
| EVO 4 IP | |
| EVO 5 BP | |
| EVO 5 IP | |
| Spare Part Type | |
| Hydraulic Component | |
| Pneumatic Component | |
| Spare Part Group | |
| Others | |
| Stock Type | |
| Standard Stock | |
