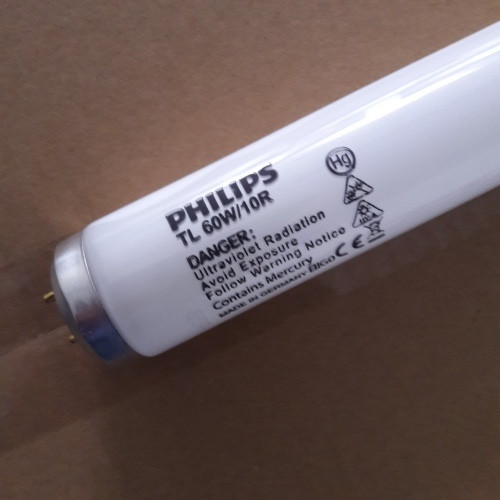

CF-001   BOX of 25 PHILIPS UVA Lamp TL 60W 10R

Also a replacement for CF-015

Please carefully check if your EVO 3 ELF or EDLF exposing unit is fitted with 60 or 80W (CF-002) UVA Lamps.

Flexo print TL lamps emit almost all of their light (99.9%) in the useful UVA and visible blue wavebands – between 350 and 400 nm – and have peak intensity at 370 nm . This makes them ideal for flexo printing equipment and photopolymerization processes. In addition, the ‘R’ lamps in the family have an internal 200-degree reflector to further optimize the lamp’s overall efficiency.

Net Weight (Piece)     260.200 g

Dimensions

A (max) 1199.4 mm

B (max) 1206.5 mm

B (min) 1204.1 mm

C (max) 1213.6 mm

D (max) 40.5 mm

/

Cap-Base         G13  [ Medium Bi-Pin Fluorescent]

Main Application        Reprography (R)

Life to 50% Failures (Nom)     2000 h

Useful Life (Nom)        1000 h

---

Color Code      10-R

Color Designation       Ultra Violet A

Chromaticity Coordinate X (Nom)      222

Chromaticity Coordinate Y (Nom)      210

UV Depreciation at 500 h       10 %

UV Depreciation at 1000 h     20 %

UV Depreciation at 2000 h     30 %

---

Power (Nom)  62 W

Lamp Current (Nom)   0.7 A

Voltage (Nom) 102 V

Approval and Application

Mercury (Hg) Content (Nom) 13.0 mg

---

UV-B/UV-A (IEC)         0.1 %

UV-A Radiation 100Hr (IEC)    15.8 W

Information below pertains to unit using 60W Lamps.

EVO 2 A - Exposure 19 lamps Ref. TM1-19; Light-Finisher 11 lamps Ref. TP1-11

EVO 3 ELF - Exposure 31 lamps Ref. TM1-31; Light-Finisher 17 lamps Ref. TP1-17

EVO 3 EDLF - Exposure 31 lamps Ref. TM1-31; Light-Finisher 17 lamps Ref. TP1-17
