| Item |
CJ2M-CPU3[] |
| Enclosure |
Mounted in a panel |
| Grounding |
Less than 100 Ω |

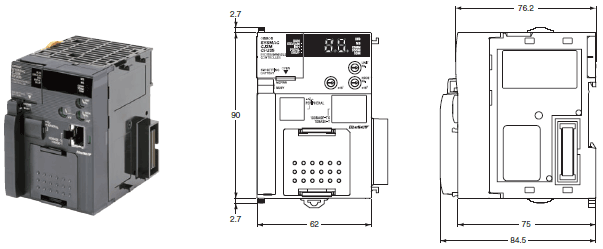

| CPU Unit Dimensions |
90 mm × 75 mm × 62 mm |
| Weight (see note 2) |
190 g or less (see note 1) |
| Current Consumption |
5 VDC, 0.7 A |
Operation
Environment |
Ambient Operating Temperature |
0 to 55 °C |
| Ambient Operating Humidity |
10% to 90% (with no condensation) |
| Atmosphere |
Must be free from corrosive gases. |
| Ambient Storage Temperature |
- 20 to 70 °C (excluding battery) |
| Altitude |
2,000 m or less |
| Pollution Degree |
2 or less: Meets IEC 61010-2-201. |
| Noise Immunity |
2 kV on power supply line (Conforms to IEC 61000-4-4.) |
| Overvoltage Category |
Category II: Meets IEC 61010-2-201. |
| EMC Immunity Level |
Zone B |
| Vibration Resistance |
Conforms to IEC60068-2-6
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz
Acceleration of 9.8 m/s2 for 100 min in X, Y, and Z directions
(10 sweeps of 10 min each = 100 min total) |
| Shock Resistance |
Conforms to IEC60068-2-27
147 m/s2, 3 times in X, Y, and Z directions (100 m/s2 for Relay
Output Units) |
| Battery |
Life |
5 years at 25 °C |
| Weight |
Approx. 10 g |
| Model |
CJ1W-BAT01 |
| Applicable Standards |
Conforms to cULus, NK, LR, and EC Directives. |
Note:1. Without a Serial Option Board.
2. Includes wight of end covers and battery.
