| working temperature | -40 to 250 °C -40 to 482 °F 233 to 523 °K |
| olive | BRASS |
| body | BRASS |
| nut | BRASS |
| retaining nut | BRASS |

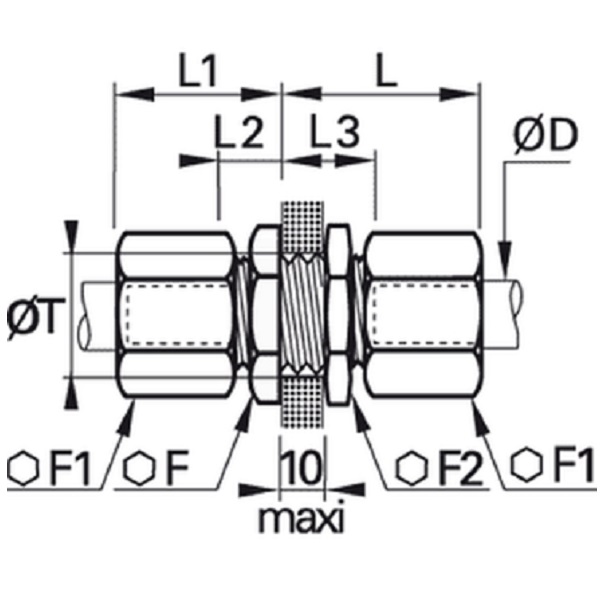

| ØD (MM) | F (mm) | F1 (mm) | F2 (mm) | Lmaxi (mm) | L1maxi (mm) | L2 (mm) | L3 (mm) | ØTmini (mm) | (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0116 10 00 | 10 | 19 | 19 | 22 | 33 | 25 | 9 | 19 | 16.5 | 0.101 |

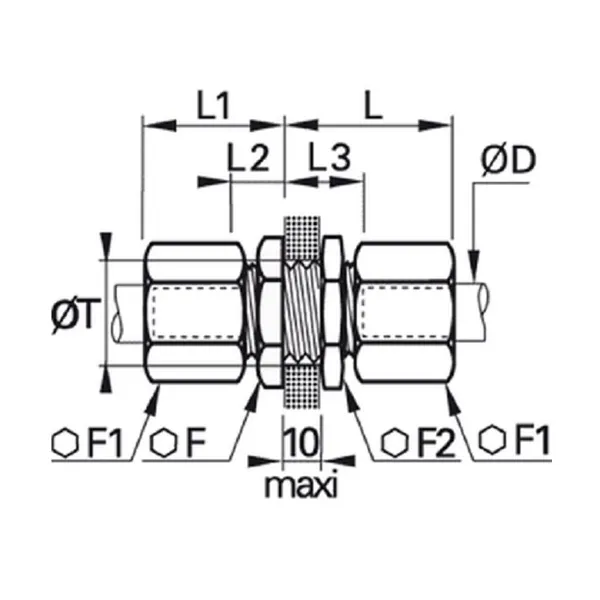

Bulkhead coupling
| working temperature | -40 to 250 °C -40 to 482 °F 233 to 523 °K |
| olive | BRASS |
| body | BRASS |
| nut | BRASS |
| retaining nut | BRASS |
| ØD (MM) | F (mm) | F1 (mm) | F2 (mm) | Lmaxi (mm) | L1maxi (mm) | L2 (mm) | L3 (mm) | ØTmini (mm) | (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0116 10 00 | 10 | 19 | 19 | 22 | 33 | 25 | 9 | 19 | 16.5 | 0.101 |
