Product Code:
DK-034
Weight:
101.00g

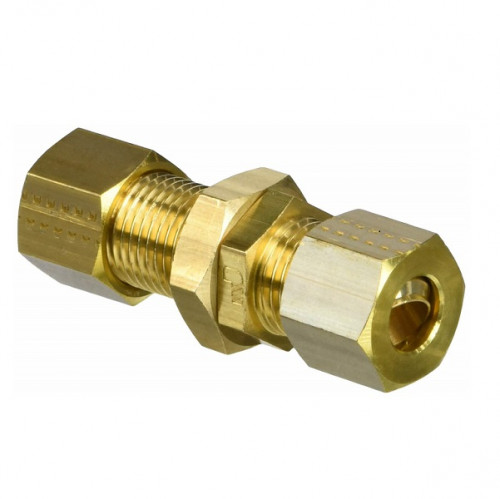

Bulkhead coupling Ø10
0116 10 00
| working temperature | -40 to 250 °C -40 to 482 °F 233 to 523 °K |
| olive | BRASS |
| body | BRASS |
| nut | BRASS |
| retaining nut | BRASS |

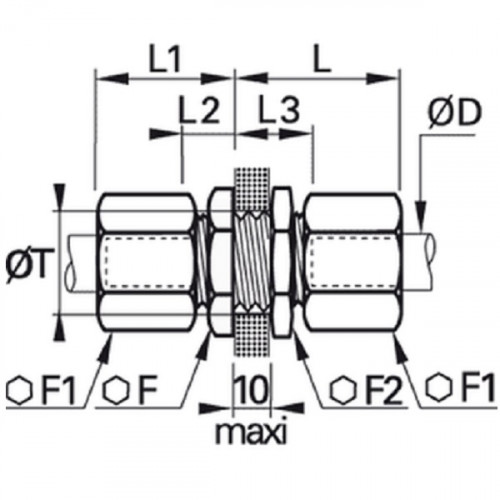

| ØD (MM) | F (mm) | F1 (mm) | F2 (mm) | Lmaxi (mm) | L1maxi (mm) | L2 (mm) | L3 (mm) | ØTmini (mm) | (kg) | |
|---|---|---|---|---|---|---|---|---|---|---|
| 0116 10 00 | 10 | 19 | 19 | 22 | 33 | 25 | 9 | 19 | 16.5 | 0.101 |
| Suitable for the following equipment models: | |
|---|---|
| CLASSIC 3 P | |
| CLASSIC 4 P | |
| EASY TO PLATE EVO 3 IPD | |
| EASY TO PLATE EVO 3 IPI | |
| EASY TO PLATE EVO 4 IPD | |
| EASY TO PLATE EVO 4 IPI | |
| EASY TO PLATE EVO 5 IPD | |
| EASY TO PLATE EVO 5 IPI | |
| EVO 2 A | |
| EVO 3 A | |
| EVO 3 IP | |
| EVO 4 IP | |
| EVO 5 IP | |
| Spare Part Type | |
| Hydraulic Component | |
| Pneumatic Component | |
| Spare Part Group | |
| Others | |
| Stock Type | |
| Standard Stock | |
