Product Code:
DK-035

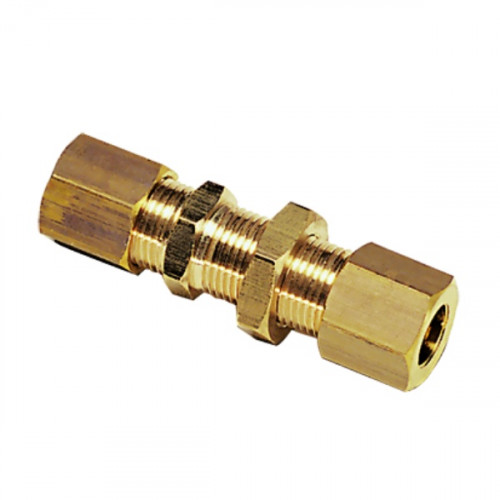

Bulkhead coupling 16 mm o.d.
Connection of 2 tubes together at a 180° angle through a panel.

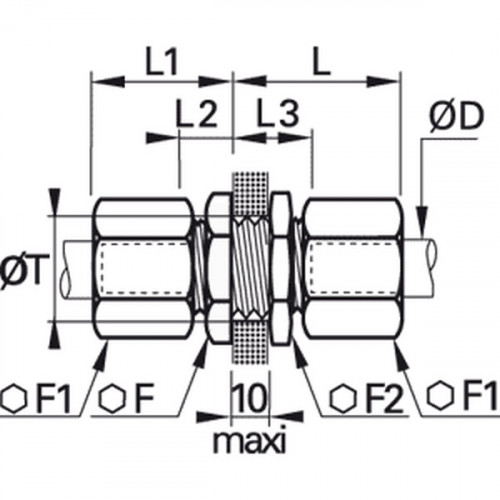

Dimensions
Attribute Value
D (mm) 16 - F (mm) 27 - F1 (mm) 27 - F2 (mm) 27 - L (mm) 36 - L1 (mm) 28 - L2 (mm) 9,5 - L3 (mm) 19,5 - N (mm) 19,5 - T (mm) 22,5
Product features
Attribute Value
Material Brass - Shape Bulkhead - Connection 1 16 mm
| Suitable for the following equipment models: | |
|---|---|
| CLASSIC 3 P | |
| CLASSIC 4 P | |
| EASY TO PLATE EVO 3 IPD | |
| EASY TO PLATE EVO 3 IPI | |
| EASY TO PLATE EVO 4 IPD | |
| EASY TO PLATE EVO 4 IPI | |
| EASY TO PLATE EVO 5 BPD | |
| EASY TO PLATE EVO 5 BPI | |
| EASY TO PLATE EVO 5 IPD | |
| EASY TO PLATE EVO 5 IPI | |
| EVO 2 A | |
| EVO 3 A | |
| EVO 3 IP | |
| EVO 4 IP | |
| EVO 5 BP | |
| EVO 5 IP | |
| Spare Part Type | |
| Hydraulic Component | |
| Stock Type | |
| Standard Stock | |
