Easy to Plate® is Vianord Engineering’s fully integrated, modular solution designed to simplify and automate the entire flexographic plate production process. By combining key steps—such as washing, drying, light finishing, into a seamless, fully automated workflow, Easy to Plate® helps increase productivity, minimise handling errors, and ensure consistent plate quality, all within a cleaner, safer working environment. This advanced solution is ideal for companies aiming to optimise production, enhance efficiency, and improve safety through state-of-the-art automation.

Easy-to-Plate®

Base Modules

Evo LFS

Light-Finisher/Stacker

Evo AD

Automatic Dryer

Evo IP or BP

Incremental or Batch Processor

Easy to Plate® Configurations

These configurations can be purchased all at once; or can be reached by upgrading an existing stand-alone processor with the Automatic Dryer module; and/or the Light Finisher/Stacker module.

Designed for fully automated and efficient plate processing, the Easy to Plate® system streamlines different stages of production in different configurations.

With a modular design, customers can invest in a complete automatic line or upgrade it step by step. Equipped with advanced monitoring technology, including internal and remote-access cameras, as well as remote diagnostic tools, the system enhances process control while reducing handling risks.

Additionally, it prevents direct contact with solvent and fumes during standard operations, ensuring a safer and cleaner working environment.

Easy to Plate®

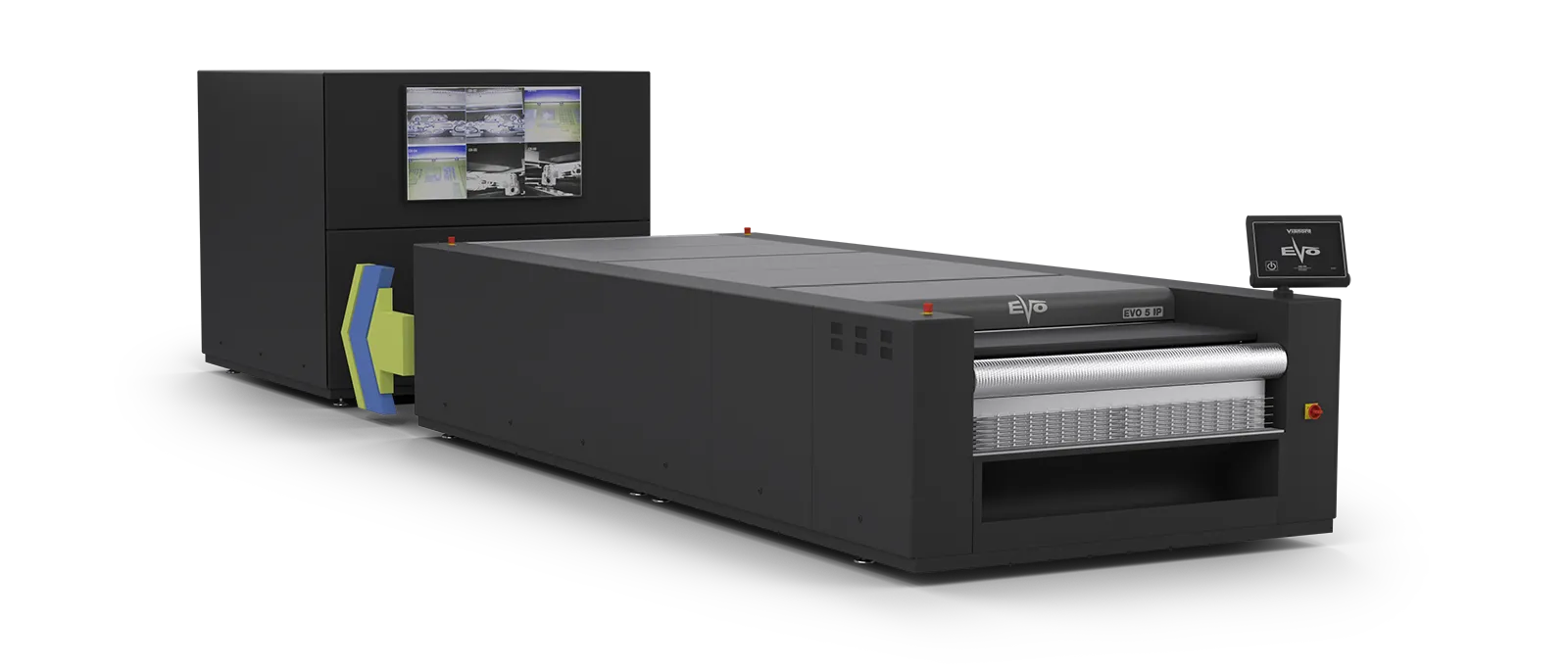

EVO IPD or BPD

Incremental or Batch Processor + Dryer

Play Evo5 BPD video

Easy to Plate®

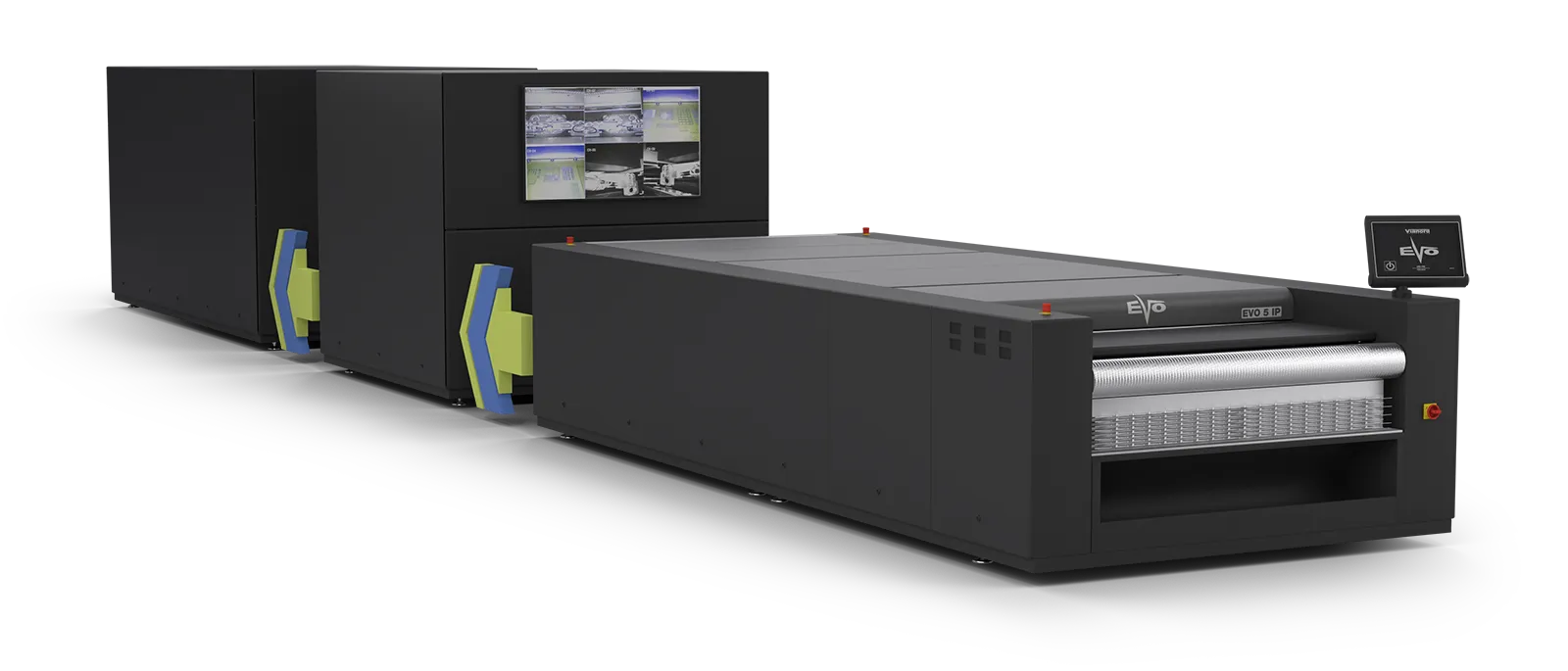

EVO IPI or BPI

Incremental or Batch Processor + Dryer + Light-Finisher/Stacker

Play Evo5 BPI video

Evo Common Features

  • Remote access included
  • Active component visualisation during the process
  • Manual function to run the components separately (Service only)
  • Plate process parameters memory (up to 24 channels)
  • Programmable warm up / switch off

Smart Entry Section

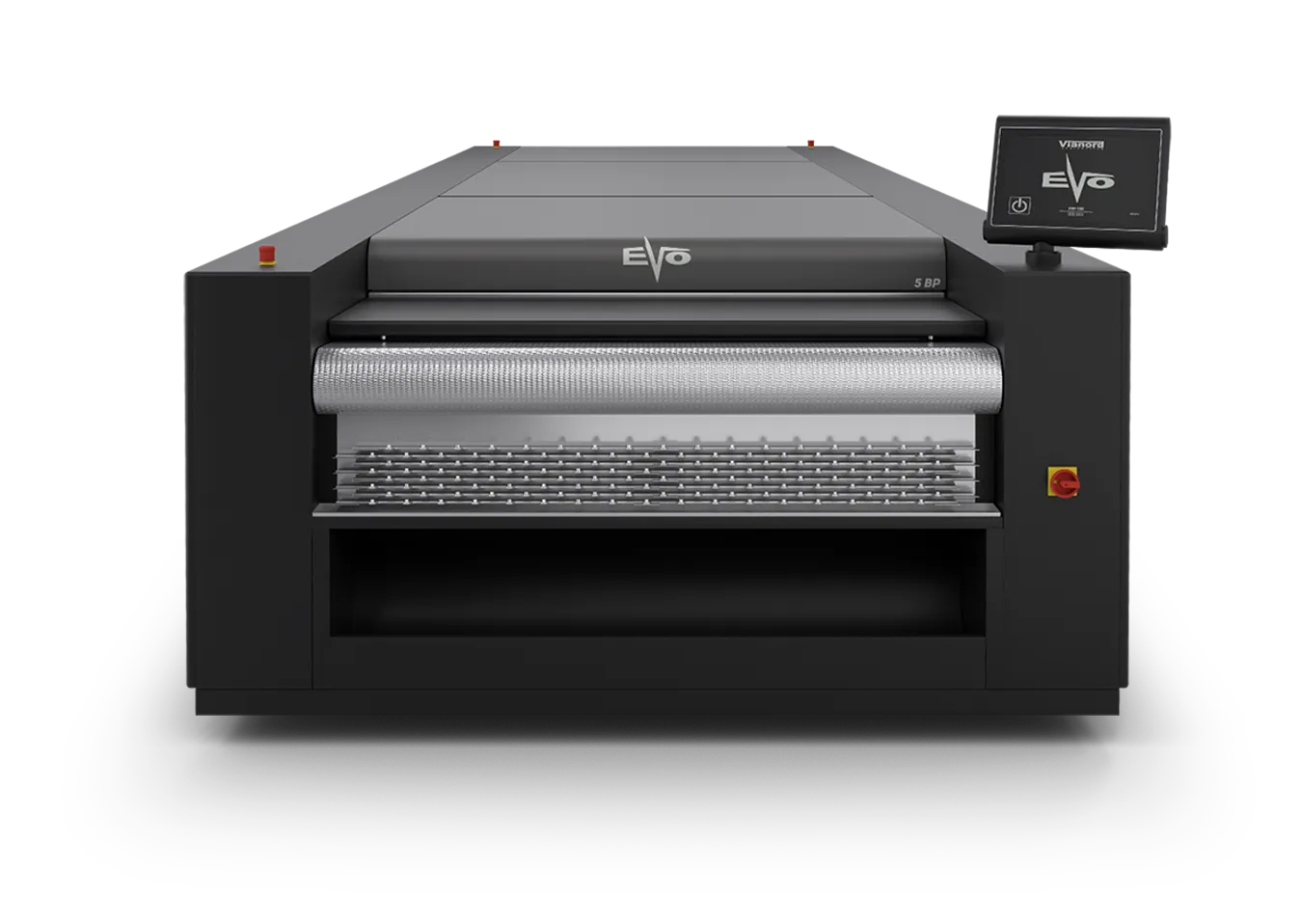

Evo 4-5 IP-BP versions
  • Roll plate storage for safe handling and immediate readiness
  • Pin bar storage for up to 8 pin bars
  • Automatic rollaway punch with programmable punch count
  • External punch included with Evo 3 IP

Washout Section

  • Separate pre-wash to prevent solvent contamination with LAMS layer
  • 2 pre-wash & 8 (Evo 3 IP), 10 (Evo 4-5 IP) and 22 (Evo 4-5 BP) brushes, dedicated cleaning, wiping, and back cleaning brushes
  • Oscillating and rotating movements
  • 3D Brush Motion, smooth start and reduced vibrations
  • Automatic brush oscillation realignment
  • Precise solid content analysis
  • Automatic solvent replenishment with programmable fresh solvent control
  • Adjustable Fresh solvent flow regulation
  • Constant preset solvent temperature
  • Upgraded cleaning and wiping system
  • Integrated exhaust system
  • Extended plate handling support for easy removal
  • Improved pin bar drop tray to minimize solvent drips

Automatic Dryer Section

  • Intelligent system for auto-positioning the nearest drawer
  • Live Plate Control with internal camera and flat screen
  • 60° Celsius hot air
  • 8 drawers
  • 4 sections with independent control (2 drawers per section)
  • Uniform temperature distribution
  • Safety thermostat in every section
  • Integrated exhaust system
  • Exhaust control with built-in safety mechanism

Light Finisher-Stacker Section

  • 1 drawer for UVA + UVC lamps for post exposure and light finishing
  • Programmable operation: simultaneous/separate/sequential
  • Independent timers for UVA and UVC
  • Air flow cooling system
  • Automatic plate cooling with programmable time
  • Fiber optics for lamp failure detection
  • integrated exhaust system
  • 8 drawers for stacking finished plates
